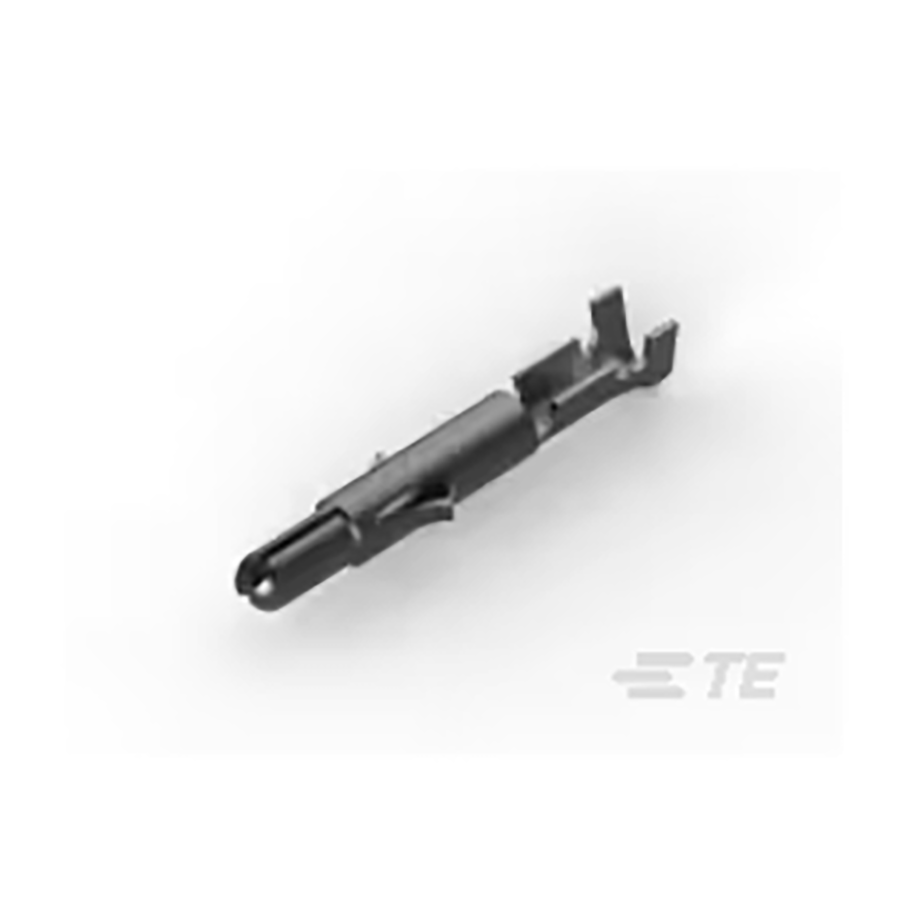

350699-1
Manufacturer:
TE Connectivity
Mfr.Part #:
350699-1
Datasheet:
Description:
IC and Component Sockets Cable Pin
| Parameter | Value |
|---|---|
| Length | 20.07 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 3.68 mm |
| Packaging | Reel |
| Voltage Rating | 600 V |
| Depth | 3.56 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | |
| Number of Terminals | 1 |
| Current Rating | 19 A |
| Max Current Rating | 19 A |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Pin (Male) |
| Shielding | Unshielded |
| Number of Contacts | 1 |
| ELV | Compliant |
| Connector Type | Pin |
| Wire/Cable Gauge | 24 AWG to 18 AWG |
| Number of Positions | |
| Number of Rows | |
| Row Spacing | |
| Wire/Cable Type | Discrete |
| Number of Ports | 1 |
| Circuit Application | Power |
| Connector System | Wire-to-Wire |
| Contact Style | Pin |
| Max Voltage Rating (AC) | 600 V |
| Contact Current Rating | 19 A |
| Wire Gauge (Max) | 24 AWG |
| Wire Gauge (Min) | 18 AWG |
| Insulation Diameter | 2.54 mm |
| Contact Gender | Male |
| VDE Tested | Yes |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Contact Retention | With |
| Contact Finish - Mating | |
| Termination Style | Crimp |
Stock: 3646
Distributors
pcbx
pcbxUnit Price$0.23180
Ext.Price$0.23180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23180 | $0.23180 |
| 10 | $0.11590 | $1.15900 |
| 50 | $0.08915 | $4.45750 |
| 100 | $0.06858 | $6.85800 |
| 500 | $0.06265 | $31.32500 |
| 1000 | $0.05723 | $57.23000 |
| 3000 | $0.05214 | $156.42000 |
| 5000 | $0.04973 | $248.65000 |
| 10000 | $0.04743 | $474.30000 |
| 30000 | $0.04524 | $1357.20000 |
| 50000 | $0.04316 | $2158.00000 |
